Measuring Distance

In between two points

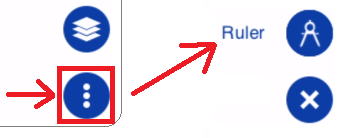

To display the bearing and distance in between two points, tap on the “Action” button and select the “Ruler”:

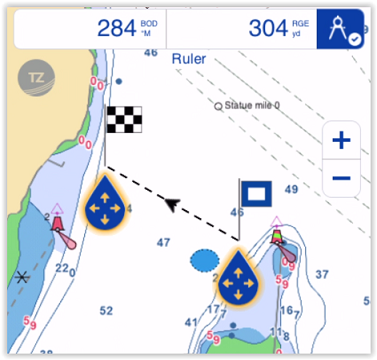

Adjust the position of the two flags that just appeared (representing the start & end position) in between the two objects or the two locations you want to take a measurement from. The bearing and distance will be displayed at the top of the screen:

Note: By default, the bearing will be displayed using a magnetic value (considering the local magnetic variation for your area), but you can change it to a true value from the Units settings.

Once you are done with the measurement, simply tap anywhere on the chart or tap on the ruler icon located on the top right of the screen (next to the bearing and distance measurement) to make the flags disappear.

In between your position and a point

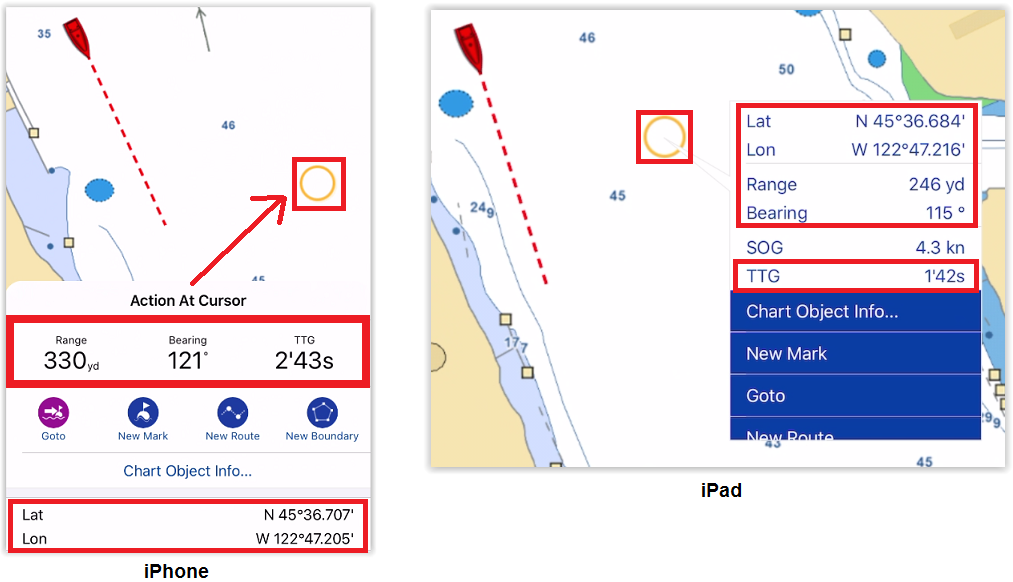

To measure distance and bearing in between your position and a point or an object, you can simply tap on it to display the Pop-Up menu:

The Pop-Up menu will display the range, bearing, position and time to go (“TTG”) to that point according to your current speed.
